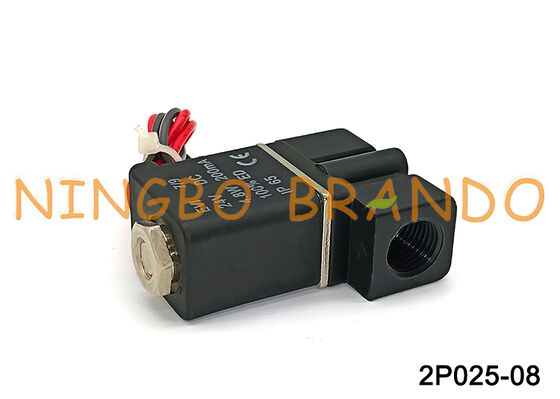

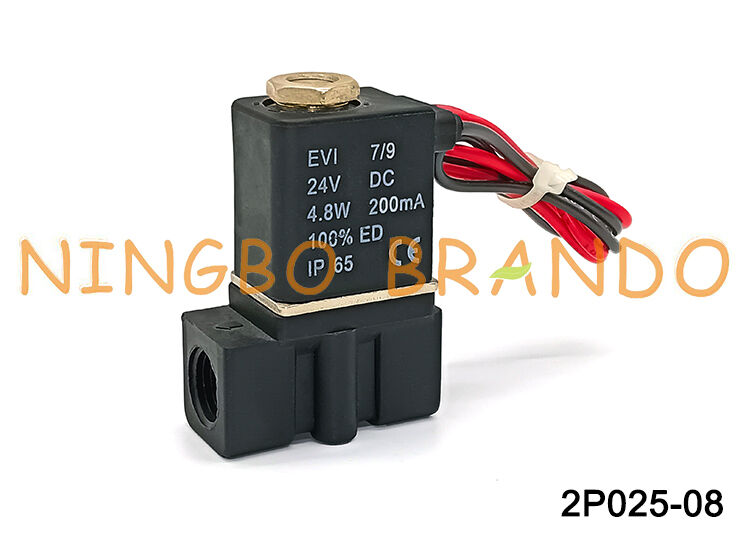

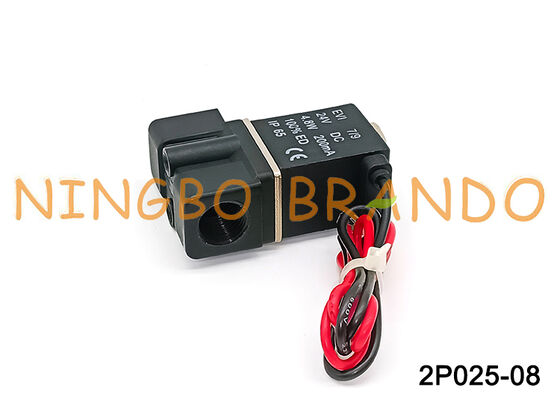

2P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V

2P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V

  • 2P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V
  • 2P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V
  • 2P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V
  • 2P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V
2P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V
รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: BRANDO
ได้รับการรับรอง: None
หมายเลขรุ่น: 2P025-08
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1 ชิ้น
ราคา: สามารถต่อรองได้
รายละเอียดการบรรจุ: กล่องภายใน, กล่อง, พาเลท
เวลาการส่งมอบ: การเจรจาต่อรอง
เงื่อนไขการชำระเงิน: T/T, เวสเทิร์นยูเนี่ยน, MoneyGram
สามารถในการผลิต: 100,000 ชิ้นต่อเดือน
ติดต่อ
รายละเอียดสินค้า
ขนาดพอร์ต: 1/4'' ขนาดปาก: 2.5มม
ช่วงความดัน: 0 ถึง 1.0MPa (0 ถึง 145PSI) ความต้านทานแรงดันสูงสุด: 1.5MPa (215PSI)
วัสดุตัวเครื่อง: พลาสติก การทำงาน: 2 ทาง ปกติปิด (NC)
แรงดันไฟฟ้า: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC การกระทำ: การแสดงโดยตรง
วัสดุซีล: เอ็นบีอาร์ นาที. เวลาดำเนินการ: 0.05 วินาทีและต่ำกว่า
เน้น:

2P025-08 Pneumatic Solenoid Valve 24V

,

AirTAC Type 2P025-08 1/4''

,

2P025-08 Pneumatic Solenoid Valve DC24V

2P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V


Product Features:

1. Safety, applicability, lightweight form factor.
2. For remote electric control fluid conduit in the valve opening and closing.
3. Please note that the gas flow direction and the takeover tooth type is correct installation.
4. With solenoid operated for control appropriate flow and direction, provide great performance.
5. Great body for a long lifespan, perfect for electrically driven pneumatic power control.


Technical Data of 2P Series Pneumatic Solenoid Valves:

Model No
2P025-06
2P025-08
Fluids
Air, Water, Oil, Gas
Action
Direct Acting
Type
2 Way, Normally Closed (NC)
Cv value
0.23
Port size
1/8''
1/4''
Viscosity limit
Under 20Cst
Pressure range
0~1.0Mpa (0~145psi)
Proof pressure
1.5Mpa (215psi)
Material body
Plastic Nylon
Seal Material
NBR
Min. activating time sec
0.05sec and below


Dimension of 2P Pneumatic Solenoid Valve:

2P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V 0



More Pneumatic Products for you to choose:


2P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V 12P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V 22P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V 3

                    2/2 Way                                      3/2 Way                        5/2 Way, Single Solenoid

2P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V 42P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V 52P025-08 Plastic Pneumatic Direct Acting Solenoid Valve for Air Water DC24V 6

     5/2 Way, Double Solenoid        5/3 Way, Double Solenoid         Pneumatic Hose Fittings


Focus on your demands, Offer you best solution:


√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing


Welcome to your any question and inquiry!
