| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | BRANDO |
| ได้รับการรับรอง: | None |
| หมายเลขรุ่น: | 6023 |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น |
|---|---|
| ราคา: | สามารถต่อรองได้ |
| รายละเอียดการบรรจุ: | กล่องภายใน, กล่อง, พาเลท |
| เวลาการส่งมอบ: | การเจรจาต่อรอง |
| เงื่อนไขการชำระเงิน: | T/T, เวสเทิร์นยูเนี่ยน, MoneyGram |
| สามารถในการผลิต: | 100,000 ชิ้นต่อเดือน |
| ขนาดพอร์ต: | 1/2'', 3/4'', 1'', 1 1/4'', 1 1/2'', 2'' | ขนาดปาก: | 10 มม., 13 มม., 20 มม., 25 มม |
|---|---|---|---|
| การดำเนินการ: | นักบินไดอะแฟรมทำงาน | ช่วงความดัน: | 0.03 ถึง 1 MPa |
| วัสดุตัวเครื่อง: | ทองเหลือง | แรงดันไฟฟ้า: | 12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| วัสดุซีล: | NBR, ไวตัน, EPDM | การทำงาน: | 2 ทาง ปกติปิด |
| เน้น: | Valve 6213 servo-assisted diaphragm valve,Burkert Type 6213 Brass Solenoid Valve,Burkert Type 6213 Valve |
||

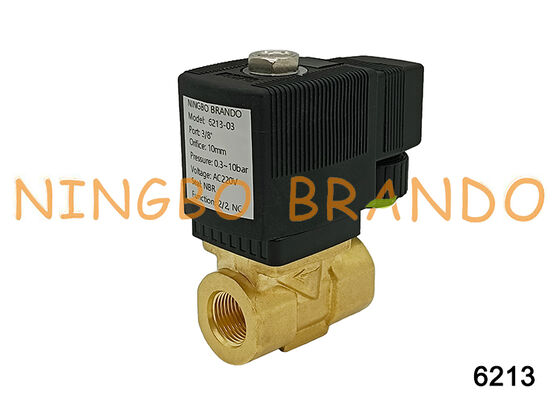

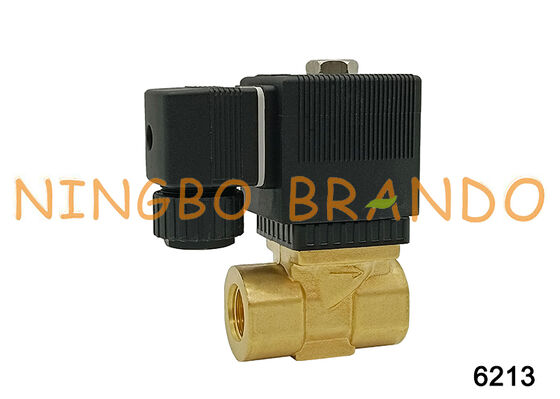

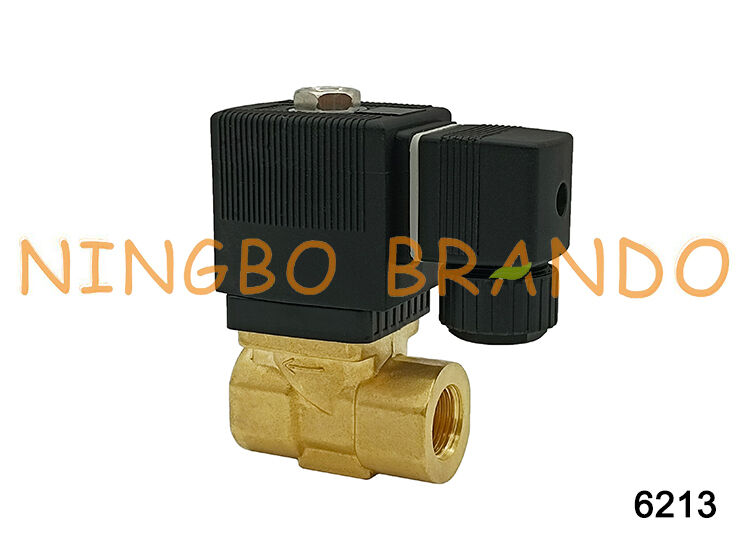

Type 6213 A 3/8 1/2 3/4 10.0 13.0 20.0 25.0 Servo-assisted 2/2-way diaphragm valve
The 6213 solenoid is a 2/2- way servo-assisted (semi-direct) solenoid valve. It is mainly used for liquid or gaseous media with little or no differential pressure. The operating process is supported by a spring coupled diaphragm and a plunger pilot control, which allows the valve to partially open without differential pressure. 6213 solenoid valve features a wide range of body materials, seal material, and voltages to meet the needs of your application. 6213 solenoid valve is similar to other servo-assisted valves like the 0290, 6281, 5282, and 0141 despite the differences in their opening/closing mechanism.
Technical Data of 6213 Solenoid Valve:
![]()
|
Model
|
Orifice Size
(mm)
|
Port Size
(Inch)
|
Working Pressure
(bar)
|
Medium Temperature
(℃)
|
Body Material
|
Dimension
|
||
|
A
|
F
|
K
|
||||||
|
6213
|
10
|
1/4''
|
0.3 to 10
|
NBR: -10 to +80
EPDM: -30 to +120
FKM: -30 to +150
|
Brass
Stainless Steel
|
50
|
32
|
90/85
|
|
10
|
3/8''
|
50
|
32
|
90/85
|
||||
|
13
|
3/8''
|
65
|
41
|
91
|
||||
|
10
|
1/2''
|
50/55
|
32
|
90
|
||||
|
13
|
1/2''
|
58/65
|
41
|
91
|
||||
|
13
|
3/4''
|
58/69
|
41
|
94
|
||||
|
20
|
3/4''
|
83
|
60
|
115
|
||||
|
20
|
1''
|
83
|
60
|
115
|
||||
|
25
|
1''
|
83
|
60
|
115
|
||||
BRANDO Solenoid Valve Production Video:
More Solenoid Valves for you to choose:
| 6013 | 6014 | 6014 FLNSCH |
| 0400 | 0311 | 0545 |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
