| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | BRANDO |
| ได้รับการรับรอง: | None |
| หมายเลขรุ่น: | 6014 FLNSCH |
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น |
|---|---|
| ราคา: | สามารถต่อรองได้ |
| รายละเอียดการบรรจุ: | กล่องภายใน, กล่อง, พาเลท |
| เวลาการส่งมอบ: | การเจรจาต่อรอง |
| เงื่อนไขการชำระเงิน: | T/T, เวสเทิร์นยูเนี่ยน, MoneyGram |
| สามารถในการผลิต: | 100,000 ชิ้นต่อเดือน |
| ขนาดปาก: | 1.5มม.,2.0มม | การดำเนินการ: | ลูกสูบทำหน้าที่โดยตรง |
|---|---|---|---|
| วัสดุตัวเครื่อง: | ทองเหลือง | แรงดันไฟฟ้า: | 12VDC, 24VDC, 110VAC, 220VAC |
| วัสดุซีล: | NBR, ไวตัน, EPDM | การทำงาน: | 3 ทางปกติปิด |
| เน้น: | Solenoid Valve 6014 C,6014 C FLNSCH,Burkert Solenoid valve 6014 C |
||

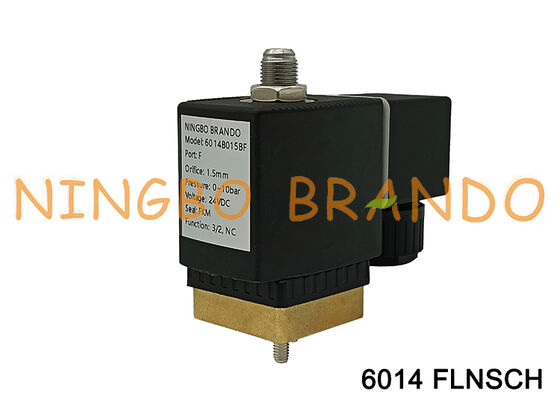

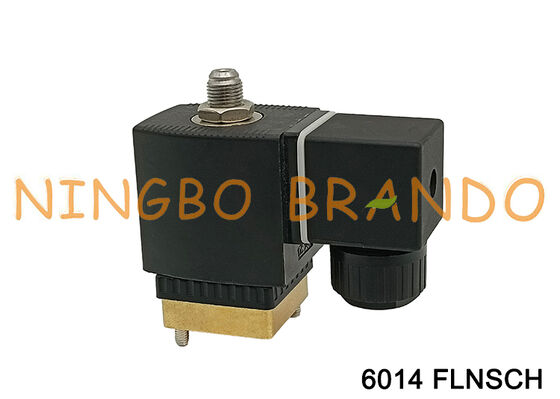

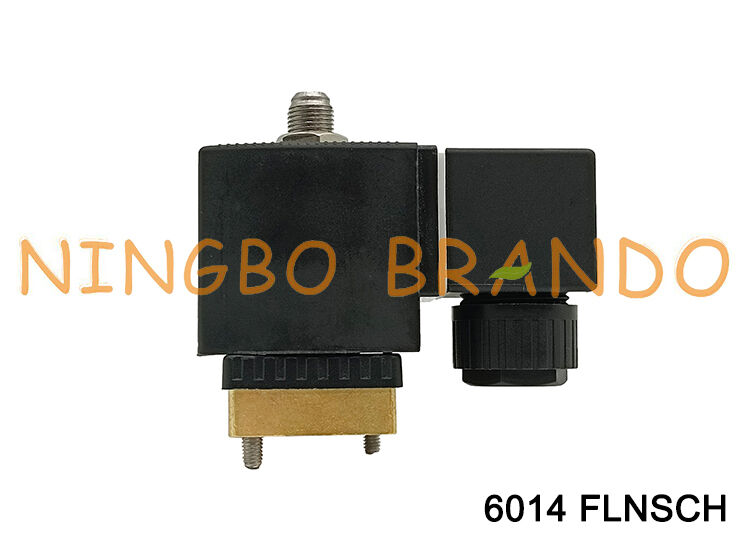

Burkert Type 6014 C FLNSCH Brass Solenoid Valve Sub Base 1.5 2.0 NBR EPDM FKM
6014 is a direct-acting plunger solenoid valve. Various seal material combinations are available depending on the application. A specific flange design (SFB) enables space-saving arrangement of valves on a manifold. The coils are moulded with polyamide or with chemically resistant epoxy.
Technical Data of 6014 Solenoid Valve:
![]()
|
Model
|
Port Size
(inch)
|
Orifice Size
(mm)
|
Kv
(m³ /h)
|
Pressure Range (bar)
|
Medium Temperature (℃)
|
Body Material
|
Voltage
|
|
3 Way Normally Closed (6014 C), 3 Way Normally Open (6014 D)
|
|||||||
|
6014
|
1/8''
|
1.5
|
0.07
|
0 to 16
|
NBR: -10 to +80
EPDM: -30 to +120
FKM: -30 to +150
|
Brass
Stainless Steel
|
12VDC
24VDC
24VAC
110VAC
220VAC
|
|
2
|
0.11
|
0 to 10
|
|||||
|
2.5
|
0.16
|
0 to 6
|
|||||
|
1/4''
|
1.5
|
0.07
|
0 to 16
|
||||
|
2
|
0.11
|
0 to 10
|
|||||
|
2.5
|
0.16
|
0 to 6
|
|||||
|
Sub-base
(SFB)
|
1.5
|
0.07
|
0 to 16
|
||||
|
2
|
0.11
|
0 to 10
|
|||||
