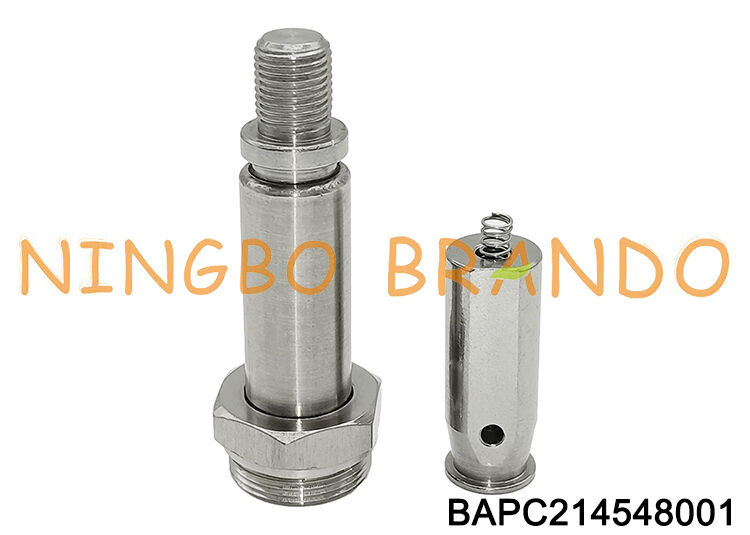

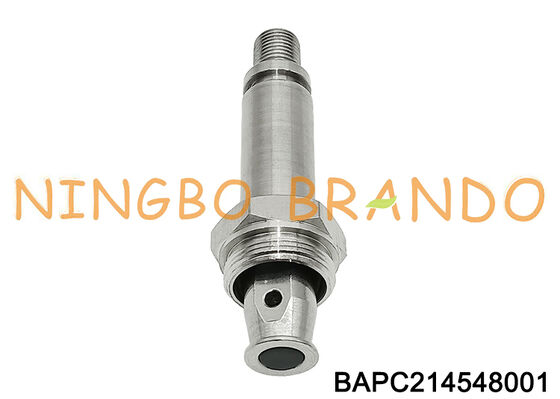

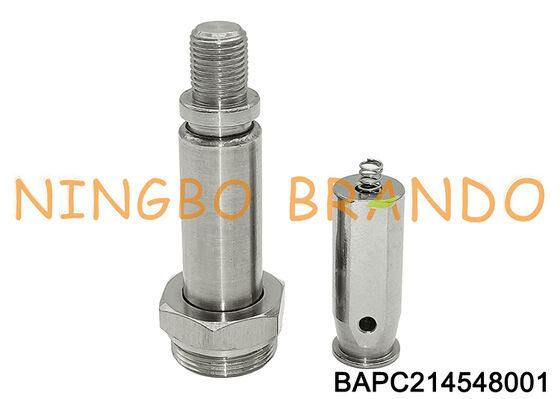

Shako Type Solenoid Armature Plunger Tube For PU220 PU225 Solenoid Valve

Shako Type Solenoid Armature Plunger Tube For PU220 PU225 Solenoid Valve

This solenoid armature is used for Nass Magnet solenoid coil 0543 and 0545, which is popularly used in Shako solenoid valves, like PU220A, PU225A, SPU225A, PU225S series. The armature assembly is the very important component of solenoid valve. When the working current passing through the coil, a magnetic field is generated around the coil. The electromagnetic force drives the moving iron core to overcome the resistance of the spring to move upward, and it is absorbed with the static iron core. When the coil is powered off, the electromagnetic force disappears, and the moving iron core is reset downward under the action of the spring force.

Dimension & Data of Solenoid Valve Armature, Coil:

Video of Solenoid Armature For 0543, 0545 Coil:

BRANDO Solenoid Valve Armature Production Video:

More Solenoid Valves for you to choose:

PU220A Series	PU225A Series
SPU225A Series	PU225S Series
