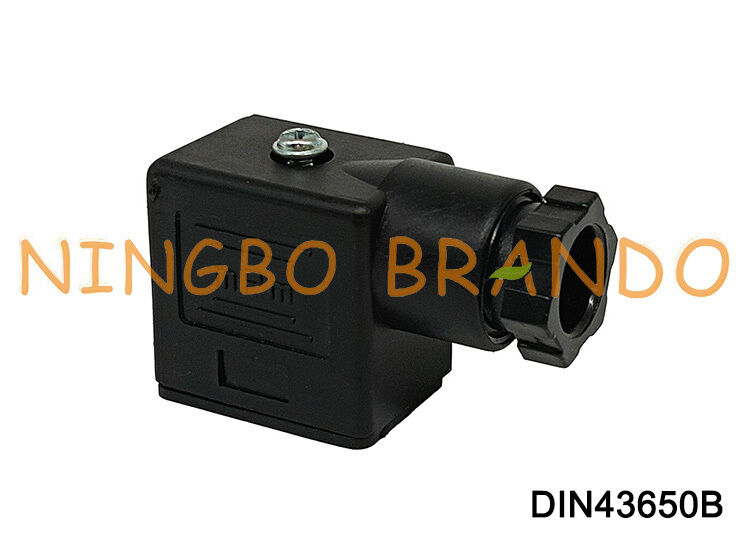

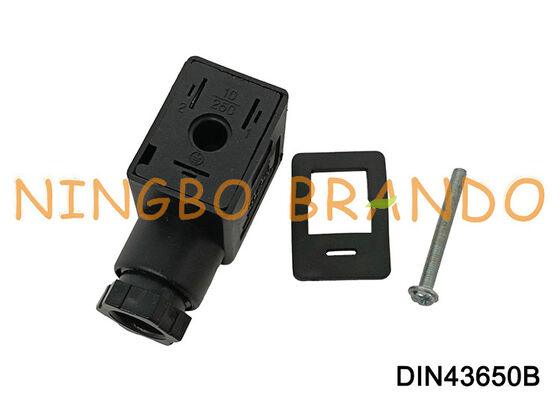

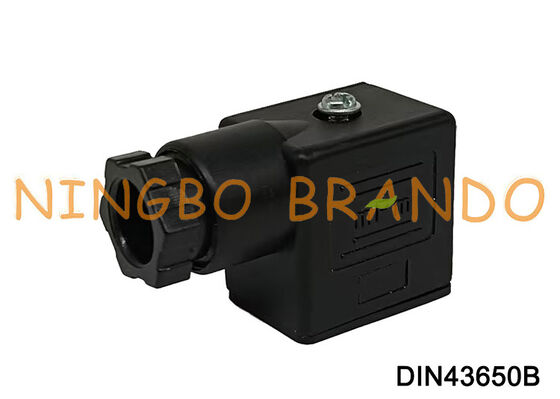

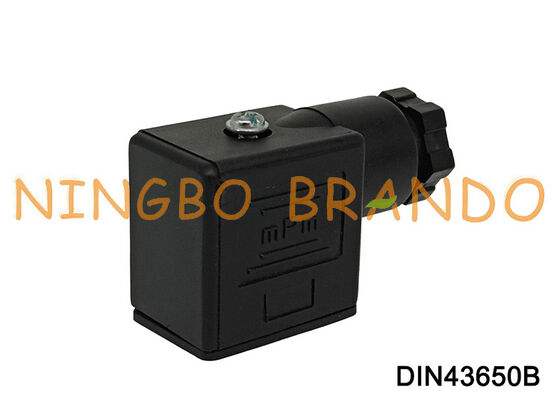

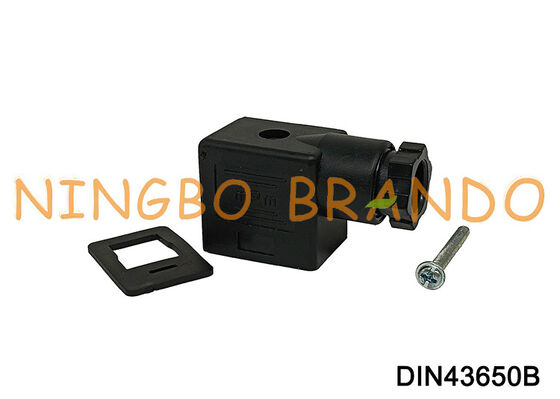

Solenoid Valve Coil Connector DIN43650 B MPM Black DIN 43650 Type B

Solenoid Valve Coil Connector DIN43650 B MPM Black DIN 43650 Type B

There are three types of DIN connector:

The type A DIN 43650 has a 28mm square base and is approximately 27 – 34mm high with 18mm spacing between the contacts. Type A connectors are available with two or three poles and earth and there are many gland sizes available to suit your cable diameters.

Type B connectors on the other hand have a 29 x 20mm rectangular base and are 32mm high. There are two applications available – DIN and IND (Industrial) with 10mm and 11mm spacing between the contacts. Type B connectors come in the two poles plus earth version and feature two Gland sizes to suit your cable requirements.

Type C connectors have a smaller 15mm square base and are roughly 25mm in height. Just like the type B connector, these are also available in DIN and IND applications and have an 8mm and 9.4mm spacing between the contacts. They feature a PG7 Gland size and two or three poles and earth.

Technical Data of DIN43650B Solenoid Valve Connector:

Dimension of DIN43650B Solenoid Coil Connector:

Product Video of DIN43650B Solenoid Valve Connetor:

More Solenoid Valve Coil Connectors for you to choose:

DIN43650A	DIN43650B	DIN43650C
Waterproof	With Cable	Other
