Single Ressure Control Air Compressor Pressure Switch 8~30 Bar

Single Ressure Control Air Compressor Pressure Switch 8~30 Bar

    • Single Ressure Control Air Compressor Pressure Switch 8~30 Bar
    • Single Ressure Control Air Compressor Pressure Switch 8~30 Bar
    • Single Ressure Control Air Compressor Pressure Switch 8~30 Bar
    • Single Ressure Control Air Compressor Pressure Switch 8~30 Bar
  • Single Ressure Control Air Compressor Pressure Switch 8~30 Bar

    รายละเอียดสินค้า:

    Place of Origin: Ningbo, China
    ชื่อแบรนด์: BRANDO
    ได้รับการรับรอง: CE ISO
    Model Number: MLSP530

    การชำระเงิน:

    Minimum Order Quantity: 2pcs
    ราคา: USD0.5--15.0 PER PC
    Packaging Details: Inner box, carton, then packed by pallet
    Delivery Time: 7 Working Days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 200000PCS PER MONTH
    ติดต่อตอนนี้
    รายละเอียดสินค้า
    Part Name: Single Ressure Control Pressure Switch Pressure Range: 8~30 bar
    Reset: AUTO Inductive Current: 72A
    ได้รับการรับรอง: CE, ISO Max.gas tight test Pressure: 33 bar

    8 To 30 Pressure Range Single Ressure Control Air Compressor Pressure Switch



    8 To 30 Pressure Range Single Ressure Control Air Compressor Pressure Switch can be used in many areas. The pressure range is 8-30bar, the differential pressure is 3-5bar. It can help you to control the pressure and it's easy to use.



    The Application of Switch:



    1. MLSP Series pressure control with copper air-box connector, suitable for freon, air, liquid and other non-corrosive media; with stainless steel air-box connector, it can be used with liquid ammonia etc corrosive gas or liquid system.

    2. MLSP Series pressure control can be used in Pneumatic, boiler, fire protection, ironing, hydraulic, pumps and other equipment.

    3. MLSP Series pressure control can start and stop refrigeration compressors and fans of condensers.

    4. MLSP Series pressure control used in refrigeration and compressor air system, adjust the equipment is high, low limit control and avoid the over-low suction pressure and over-high exhaust pressure.



    Introduction:
    1, P series pressure controls can be used not only in fluoride refrigeration, but also in air and liquid.
    2, P series pressure controls are fitted with 3 kinds of changeover switch: a single pole double throw (SPDT), a double pole single throw(DPST) and a double pole double throw(DPDT). The position of the switch is determined by the pressure control setting and the pressure at the connector.
    3, P series pressure control can protect compressors in refrigeration and air-condition plant, and keep them from over-low pressure or over-high suction pressure.

    4, P series pressure controls can start and stop refrigeration compressors and fans of air condensers.



    Specification of Pressure Switch:



    Rated Voltage(v) 125V 250V 24V
    Rated Amps A.C. A.C. D.C.
    Non-Inductive Current 20A 10A 10A
    Inductive Current Full Load Current 15A 8A 8A
    Locked Roter 72A 64A




    The Structure Diagram:

    Single Ressure Control Air Compressor Pressure Switch 8~30 Bar

    The Connection of the Switch



    Single Ressure Control Air Compressor Pressure Switch 8~30 Bar

    The Drawing of the Switch

    Single Ressure Control Air Compressor Pressure Switch 8~30 Bar



    The Switch Contact Form



    About Service:

    1. We offer professional order operation service: Same sales person follows the order from discussing step to the end of you get the goods of order

    2. If any problem occur during production or you meet quality problem when you are using our goods, inform us at once, we will offer you best solution

    3. Contact us via email, phone calling, skype, or other chatting methods, we will response at once

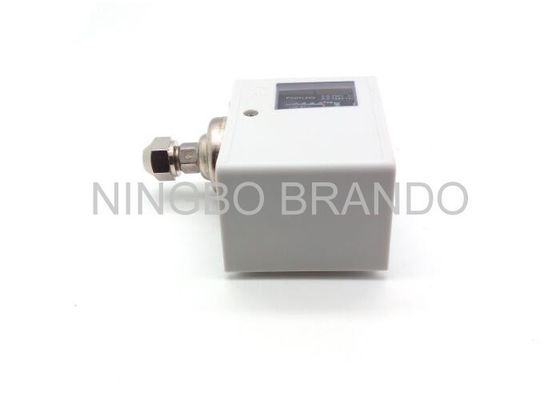

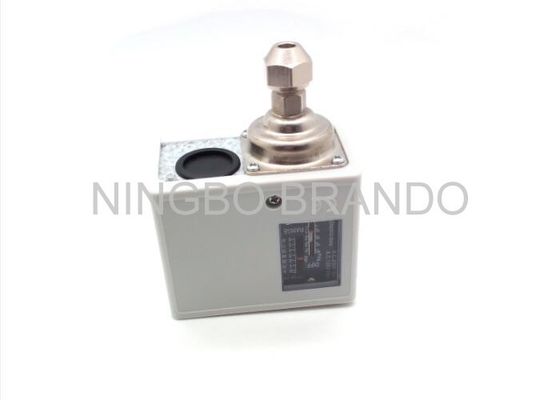

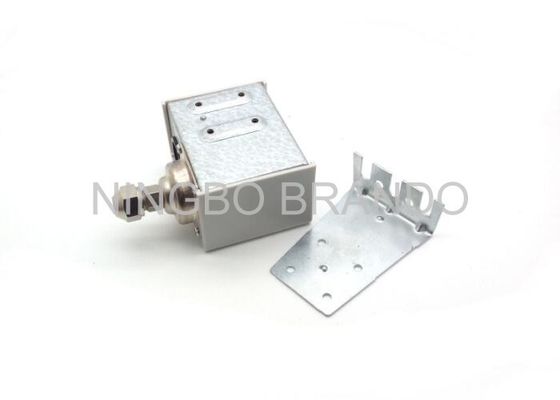

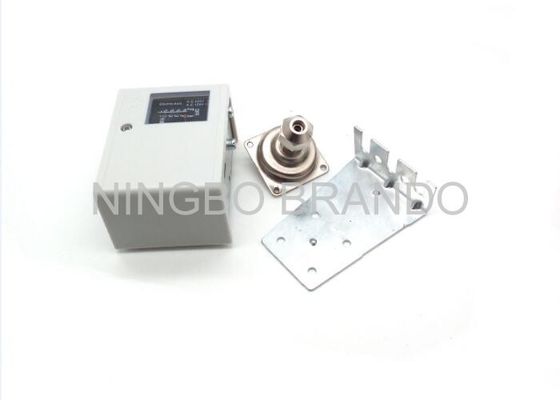

    The pictures of our Pressure Switch:



    Single Ressure Control Air Compressor Pressure Switch 8~30 Bar





    Single Ressure Control Air Compressor Pressure Switch 8~30 Bar

    We also produce other kind switch







    Welcome your any question, we will response at once. We also can produce as customized.

    Welcome your drawing or sample.
